Design a Ride Matching System (Uber / Ola)

The numbers for a ride-matching system are dominated by one thing: location updates. Rides themselves are relatively low-volume (tens of thousands per second), but tracking millions of drivers in real time generates write traffic that dwarfs everything else. Derive every number out loud — interviewers reward the reasoning.

Traffic: Rides

Start with the headline number — 10M rides/day — and derive the per-second rates. Peak traffic is typically 3× average (rush hour in major cities), and each ride involves multiple API calls across its lifecycle.

Rides:
  10M rides/day ÷ 86,400s ≈ 115 rides/sec (average)
  Peak ≈ 3× average ≈ 350 rides/sec (rush hour)

Each ride triggers:
  1 ride request
  1 match attempt (may retry 2–3 times on timeout)
  1 acceptance confirmation
  ~5 state transitions (requested → completed)
  ─────────────────────────────
  ~8 write operations per ride

Total ride-related writes:
  350 × 8 = ~2,800 writes/sec at peak

Implication:
  → Ride writes are NOT the bottleneck. A single Postgres handles this.
  → The real pressure is location updates (next section).

Traffic: Location updates (the hot path)

This is where the system gets interesting. Every active driver sends a GPS update every 3–5 seconds. With 5M concurrent drivers, this creates a write volume that no single database can handle — it must be served from an in-memory geospatial index.

Active drivers: 5M concurrent (globally)
Update frequency: every 4 seconds (average)

Location writes:
  5,000,000 ÷ 4 = 1,250,000 writes/sec (1.25M/sec)

Each update payload:
  driver_id (8B) + lat (8B) + lng (8B) + timestamp (8B) + heading (4B) + speed (4B)
  ≈ 40 bytes per update

Bandwidth (ingress):
  1.25M × 40B = 50 MB/sec ingress (just GPS data)
  With WebSocket framing overhead: ~80 MB/sec

Implication:
  → 1.25M writes/sec is the defining constraint.
  → Must be in-memory (Redis Geo or custom spatial index).
  → Cannot be relational DB — Postgres maxes at ~50K writes/sec.
  → WebSocket connections: 5M persistent connections across the fleet.

Traffic: Matching queries (reads from the spatial index)

Every ride request triggers a geospatial query: "find the N nearest available drivers within R km of this pickup point." At 350 requests/sec peak, this is modest — but each query must complete in under 50ms to keep total matching latency under 1 second.

Matching queries:
  350/sec at peak (one per ride request)
  Each query: radius search within 3–5 km, return top 10 drivers
  Target: < 50ms per query (leaves budget for ranking + offer)

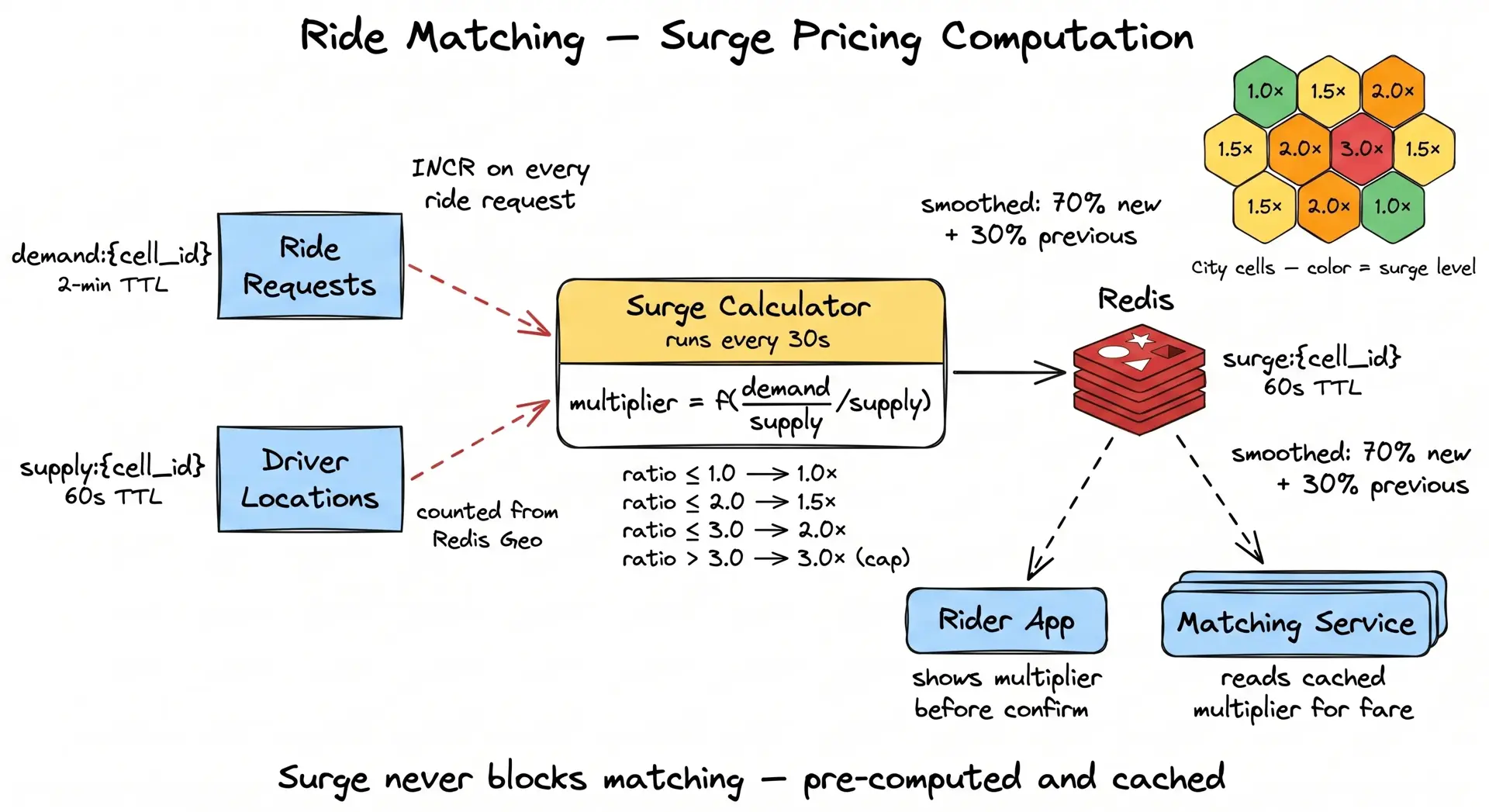

Surge pricing queries:
  Computed per geo-cell, updated every 30 seconds
  ~100K cells globally ÷ 30s = ~3,300 cell updates/sec

ETA queries:
  ~700/sec (one for pickup ETA + one for trip ETA per ride)
  Each hits a road-graph service — heavier compute (~100ms)

Implication:
  → Spatial reads are low-volume but latency-critical.
  → Surge is a background computation, not on the hot path.
  → ETA is the slowest component — budget 100ms, parallelize with matching.

Storage

Ride-matching has two storage profiles: hot state (driver locations, active rides) that lives entirely in memory, and cold state (ride history, analytics) that grows linearly with rides completed.

Hot state (in-memory):
  Driver locations: 5M × 40B = 200 MB
  Driver metadata (availability, vehicle type): 5M × 200B = 1 GB
  Active rides (state machine): ~500K concurrent × 500B = 250 MB
  Total hot state: ~1.5 GB — fits in a single Redis instance

Cold state (persistent):
  Ride history: 10M rides/day × 2KB per ride = 20 GB/day
  Location traces (for disputes/analytics): 10M rides × 50 points × 40B = 20 GB/day
  → ~40 GB/day → ~15 TB/year

Implication:
  → Hot state is trivially small. Memory is not the constraint — write throughput is.
  → Cold storage needs time-partitioned tables (by month) with archival to S3.

WebSocket connections

Each active driver maintains a persistent WebSocket connection for sending location updates and receiving ride offers. Managing 5M concurrent connections requires a fleet of connection servers.

Connections per server:
  A well-tuned Linux box handles ~500K WebSocket connections
  (with epoll, 64GB RAM, tuned file descriptors)

Fleet size:
  5M connections ÷ 500K per box = 10 connection servers (minimum)
  With 2× headroom for failover: 20 connection servers

Memory per connection:
  ~10KB (socket buffers + session state)
  500K × 10KB = 5 GB per server — comfortable on 64GB boxes

Implication:
  → Connection servers are stateful (sticky sessions via driver_id hash).
  → Losing a server = 500K drivers temporarily disconnected → must reconnect.
  → Use consistent hashing for driver → server assignment.

A ride-matching system has two distinct API surfaces: a REST API for ride lifecycle operations (request, cancel, complete) and a WebSocket API for real-time bidirectional communication (location streaming, ride offers, status updates). Define both before the HLD so every component has a concrete contract.

REST Endpoints

The REST surface covers all rider-initiated actions and driver responses. Each endpoint maps to a state transition in the ride lifecycle. Latency targets vary — requesting a ride must feel instant, while fetching ride history can tolerate more.

Ride request payload

The ride request is the most important endpoint — it kicks off the entire matching pipeline. The payload must include everything needed to compute pricing, find nearby drivers of the right type, and validate the rider's payment method before matching begins.

POST /api/v1/rides HTTP/1.1
Host: api.rideco.com
Authorization: Bearer <jwt>
Content-Type: application/json
Idempotency-Key: ride-req-8f4b3c-...

{
  "pickup": { "lat": 12.9716, "lng": 77.5946 },
  "destination": { "lat": 12.9352, "lng": 77.6245 },
  "vehicle_type": "economy",
  "payment_method_id": "pm_abc123",
  "rider_id": "usr_xyz789"
}

--- 202 Accepted ---
{
  "ride_id": "ride_a1b2c3",
  "status": "MATCHING",
  "surge_multiplier": 1.5,
  "estimated_fare": { "min": 180, "max": 220, "currency": "INR" },
  "estimated_pickup_eta_seconds": 240,
  "created_at": "2026-05-15T09:12:00Z"
}

--- 402 Payment Required ---
{ "error": "PAYMENT_HOLD_FAILED", "message": "Card declined" }

--- 503 Service Unavailable ---
{ "error": "NO_DRIVERS_AVAILABLE", "message": "No drivers in your area" }

WebSocket API (real-time channel)

Both riders and drivers maintain persistent WebSocket connections for real-time communication. Drivers stream location updates upstream; the server pushes ride offers, status changes, and navigation hints downstream. This avoids the overhead of polling and gives sub-second delivery of critical events.

--- Driver → Server (upstream) ---

LOCATION_UPDATE:
  { "type": "location", "lat": 12.9716, "lng": 77.5946,
    "heading": 45, "speed": 30, "ts": 1715760000 }
  Frequency: every 3–5 seconds while online

DRIVER_STATUS:
  { "type": "status", "available": true }
  Sent when driver goes online/offline or completes a ride

--- Server → Driver (downstream) ---

RIDE_OFFER:
  { "type": "ride_offer", "ride_id": "ride_a1b2c3",
    "pickup": { "lat": 12.97, "lng": 77.59 },
    "destination": { "lat": 12.93, "lng": 77.62 },
    "fare_estimate": 200, "timeout_seconds": 15 }

RIDE_CANCELLED:
  { "type": "ride_cancelled", "ride_id": "ride_a1b2c3",
    "reason": "rider_cancelled" }

--- Server → Rider (downstream) ---

MATCH_FOUND:
  { "type": "match_found", "ride_id": "ride_a1b2c3",
    "driver": { "name": "Raj", "vehicle": "KA-01-AB-1234",
    "rating": 4.8, "eta_seconds": 180 } }

DRIVER_LOCATION:
  { "type": "driver_location", "lat": 12.97, "lng": 77.59 }
  Frequency: every 3 seconds while en route to pickup

STATUS_UPDATE:
  { "type": "status", "ride_id": "ride_a1b2c3",
    "status": "EN_ROUTE", "ts": 1715760120 }

Driver acceptance flow

When the matching service finds a suitable driver, it sends a RIDE_OFFER via WebSocket with a 15-second timeout. The driver responds via REST (simpler for idempotency and retry handling). If the driver doesn't respond or rejects, the system automatically re-matches to the next candidate.

POST /api/v1/rides/ride_a1b2c3/accept HTTP/1.1
Authorization: Bearer <driver_jwt>

--- 200 OK ---
{
  "ride_id": "ride_a1b2c3",
  "status": "ACCEPTED",
  "pickup": { "lat": 12.9716, "lng": 77.5946, "address": "MG Road Metro" },
  "destination": { "lat": 12.9352, "lng": 77.6245 },
  "rider": { "name": "Priya", "rating": 4.9 },
  "fare_estimate": 200
}

--- 409 Conflict ---
{ "error": "RIDE_ALREADY_MATCHED", "message": "Another driver accepted first" }

--- 410 Gone ---
{ "error": "OFFER_EXPIRED", "message": "Acceptance timeout exceeded" }

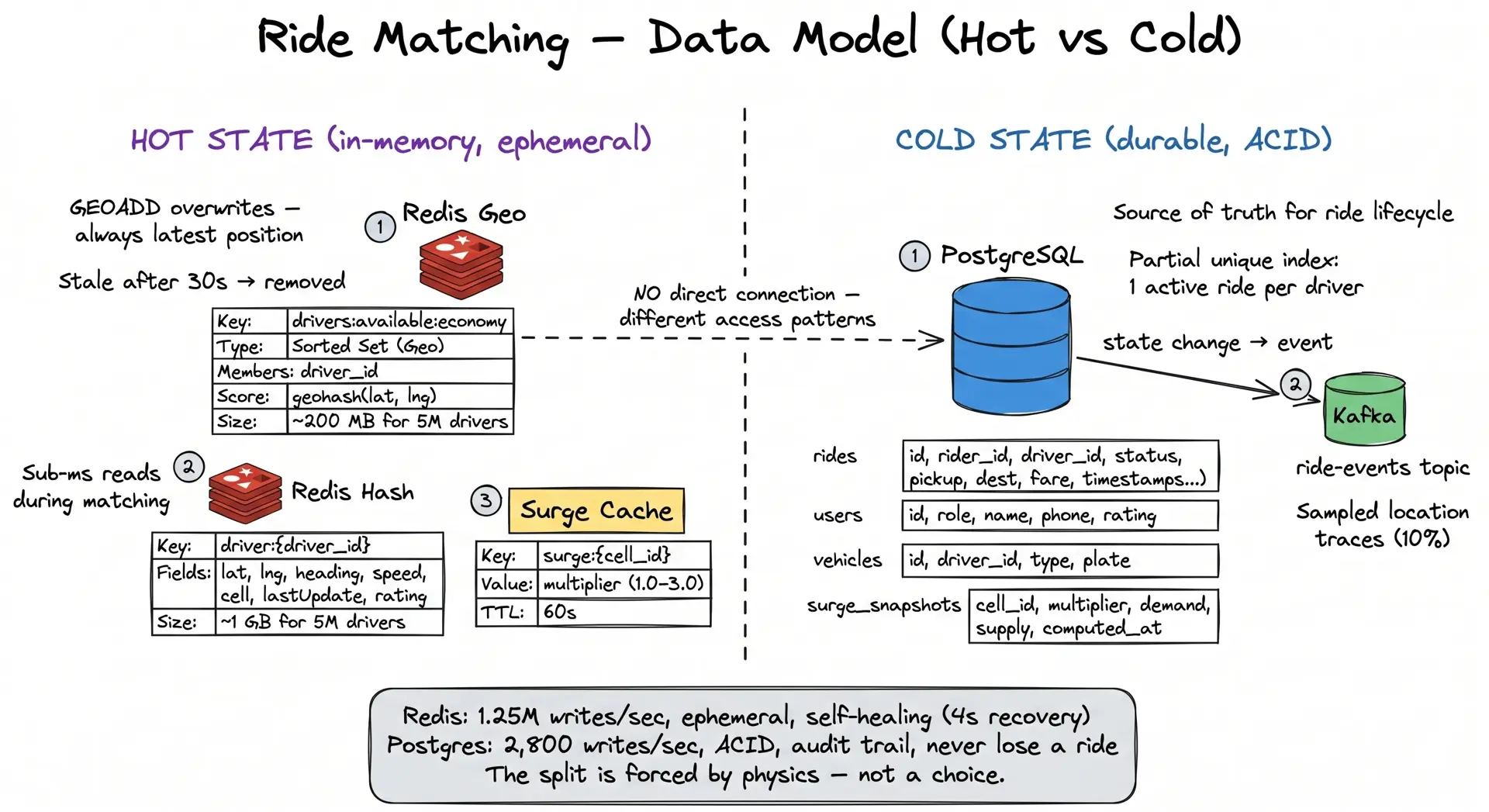

The data model splits cleanly into two worlds: hot state that lives in memory (driver locations, active ride state machines) and cold state that lives in a relational database (ride history, user profiles, payment records). Design for the access pattern first — the matching service needs sub-millisecond reads from the spatial index, while ride history queries can tolerate 10ms.

Ride state machine

Every ride is a finite state machine with well-defined transitions. Invalid transitions must be rejected — a ride cannot go from REQUESTED directly to COMPLETED. The state machine is the consistency boundary: all state transitions are serialized per ride to prevent race conditions (e.g., rider cancels while driver accepts).

REQUESTED ──→ MATCHING ──→ OFFERED ──→ ACCEPTED ──→ EN_ROUTE ──→ IN_PROGRESS ──→ COMPLETED
    │              │            │           │           │              │
    └── CANCELLED  └── NO_MATCH └── EXPIRED └── CANCEL └── CANCELLED  └── CANCELLED
                                    (timeout)

Valid transitions:
  REQUESTED  → MATCHING     (payment hold succeeded)
  MATCHING   → OFFERED      (candidate driver found)
  MATCHING   → NO_MATCH     (no drivers available after retries)
  OFFERED    → ACCEPTED     (driver accepts within timeout)
  OFFERED    → EXPIRED      (driver timeout → re-match)
  ACCEPTED   → EN_ROUTE     (driver confirms heading to pickup)
  EN_ROUTE   → IN_PROGRESS  (driver confirms rider picked up)
  IN_PROGRESS → COMPLETED   (driver confirms drop-off)
  Any active state → CANCELLED (rider or driver cancels)

Invariant: exactly ONE active ride per driver at any time.

Rides table (PostgreSQL)

The rides table is the source of truth for ride lifecycle. It stores the full history of every ride including fare, route, and timestamps for each state transition. The status column uses a constrained enum to enforce valid states at the database level.

CREATE TYPE ride_status AS ENUM (
  'REQUESTED', 'MATCHING', 'OFFERED', 'ACCEPTED',
  'EN_ROUTE', 'IN_PROGRESS', 'COMPLETED', 'CANCELLED', 'NO_MATCH'
);

CREATE TABLE rides (
  id              UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  rider_id        UUID NOT NULL REFERENCES users(id),
  driver_id       UUID REFERENCES users(id),          -- NULL until matched
  status          ride_status NOT NULL DEFAULT 'REQUESTED',
  vehicle_type    VARCHAR(20) NOT NULL,
  pickup_lat      DOUBLE PRECISION NOT NULL,
  pickup_lng      DOUBLE PRECISION NOT NULL,
  dest_lat        DOUBLE PRECISION NOT NULL,
  dest_lng        DOUBLE PRECISION NOT NULL,
  surge_multiplier DECIMAL(3,2) NOT NULL DEFAULT 1.00,
  fare_estimate   INTEGER,                            -- in smallest currency unit
  fare_final      INTEGER,                            -- set on completion
  payment_method_id VARCHAR(50) NOT NULL,
  requested_at    TIMESTAMPTZ NOT NULL DEFAULT now(),
  matched_at      TIMESTAMPTZ,
  started_at      TIMESTAMPTZ,                        -- rider picked up
  completed_at    TIMESTAMPTZ,
  cancelled_at    TIMESTAMPTZ,
  cancel_reason   VARCHAR(50),
  created_at      TIMESTAMPTZ DEFAULT now(),
  updated_at      TIMESTAMPTZ DEFAULT now()
);

-- Active rides for a driver (enforce single active ride)
CREATE UNIQUE INDEX idx_rides_active_driver
  ON rides (driver_id)
  WHERE status IN ('ACCEPTED', 'EN_ROUTE', 'IN_PROGRESS');

-- Rider's active ride lookup
CREATE INDEX idx_rides_rider_active
  ON rides (rider_id, status)
  WHERE status NOT IN ('COMPLETED', 'CANCELLED', 'NO_MATCH');

-- History queries (rider dashboard)
CREATE INDEX idx_rides_rider_history
  ON rides (rider_id, requested_at DESC);

Driver location (Redis — hot state)

Driver locations are NOT stored in PostgreSQL. They change every 4 seconds — writing 1.25M updates/sec to a relational DB is impossible. Instead, locations live in Redis Geo sorted sets, which support both high-throughput writes and radius queries natively.

Key pattern: drivers:available:{vehicle_type}
Type: Sorted Set (Geo)
Members: driver_id
Score: geohash-encoded lat/lng

Commands used:
  GEOADD drivers:available:economy <lng> <lat> <driver_id>
  GEORADIUS drivers:available:economy <lng> <lat> 5 km COUNT 20 ASC

Supplementary hash for driver metadata:
  HSET driver:{driver_id} status available vehicle_type economy
       heading 45 speed 30 last_update 1715760000 rating 4.8

TTL strategy:
  If no location update received in 30 seconds → driver considered offline.
  Background job removes stale entries every 10 seconds.

Why this split (Postgres + Redis)

The two stores serve fundamentally different access patterns. Trying to use one for both would fail — Postgres can't handle 1.25M writes/sec, and Redis can't provide ACID transactions for ride state. The split is not optional; it's forced by the physics of the workload.

Supporting tables

Beyond rides and locations, the system needs tables for users (riders + drivers), vehicles, and surge pricing snapshots. These are straightforward relational tables with standard indexing.

CREATE TABLE users (
  id          UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  role        VARCHAR(10) NOT NULL,  -- 'rider' | 'driver'
  name        VARCHAR(100) NOT NULL,
  phone       VARCHAR(20) NOT NULL UNIQUE,
  rating      DECIMAL(2,1) DEFAULT 5.0,
  created_at  TIMESTAMPTZ DEFAULT now(),
  updated_at  TIMESTAMPTZ DEFAULT now()
);

CREATE TABLE vehicles (
  id          UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  driver_id   UUID NOT NULL REFERENCES users(id),
  type        VARCHAR(20) NOT NULL,  -- 'economy', 'premium', 'xl'
  plate       VARCHAR(20) NOT NULL,
  model       VARCHAR(50),
  created_at  TIMESTAMPTZ DEFAULT now(),
  updated_at  TIMESTAMPTZ DEFAULT now()
);

CREATE TABLE surge_snapshots (
  id          BIGSERIAL PRIMARY KEY,
  cell_id     VARCHAR(20) NOT NULL,  -- S2 cell token
  multiplier  DECIMAL(3,2) NOT NULL,
  demand      INTEGER NOT NULL,
  supply      INTEGER NOT NULL,
  computed_at TIMESTAMPTZ NOT NULL DEFAULT now()
);
CREATE INDEX idx_surge_cell_time ON surge_snapshots (cell_id, computed_at DESC);

The architecture splits into four independent paths, each with its own latency target, consistency model, and scaling axis. This separation is forced by the workload: location ingestion at 1.25M/sec cannot share infrastructure with ride state transitions that require ACID guarantees. Coupling them would mean a surge in location traffic degrades ride acceptance — unacceptable.

Path 1: Location Ingestion (write-heavy, fire-and-forget)

Drivers stream GPS coordinates every 3–5 seconds over persistent WebSocket connections. The connection servers receive these updates, validate them minimally, and write directly to the geospatial index. This path must handle 1.25M writes/sec with no backpressure to the driver app — a dropped update is acceptable (the next one arrives in 4 seconds), but blocking the connection is not.

The connection servers are stateful — each driver is pinned to one server via consistent hashing on driver_id. The Location Service is stateless and horizontally scaled — it simply validates coordinates (reject impossible jumps like 500km in 4 seconds) and fans out the write to Redis.

Path 2: Matching (latency-critical, read from spatial index)

When a rider requests a ride, the Matching Service queries the geospatial index for nearby available drivers, ranks them by ETA and rating, and sends a ride offer to the best candidate. The entire pipeline — from request to offer sent — must complete in under 1 second. This is the product experience.

The Matching Service is the brain. It reads from Redis Geo (spatial query), enriches with driver metadata (Redis Hash), computes ETA (road-graph service), applies business rules (driver acceptance rate, rating threshold), and selects the winner. If the chosen driver rejects or times out, it retries with the next candidate — up to 3 attempts before returning NO_MATCH.

Path 3: Ride Lifecycle (strongly consistent, low volume)

Every state transition (accept, start, complete, cancel) is a write to PostgreSQL with ACID guarantees. This path handles ~2,800 writes/sec at peak — well within a single Postgres primary. The critical invariant: a driver can never be assigned two rides simultaneously. The partial unique index enforces this at the DB level.

After each state transition, the Ride Service publishes an event to Kafka for downstream consumers: billing (trigger payment on completion), analytics (ride metrics), driver scoring (acceptance rate), and fraud detection.

Path 4: Surge & ETA (async computation, eventually consistent)

Surge pricing and ETA are computed asynchronously and cached. Surge runs every 30 seconds per geo-cell, comparing demand (ride requests) to supply (available drivers). ETA uses a road-graph service that pre-computes travel times. Neither blocks the matching path — they provide pre-computed values that matching reads from cache.

Component responsibilities

Each component has a single, clear job. If you can't describe what it does in one sentence, it's doing too much.

Why four separate paths matter

The location ingestion SLA (handle 1.25M writes/sec without backpressure) is incompatible with the ride lifecycle SLA (ACID transactions, never lose a state change). Coupling them means a Redis hiccup during location writes could block ride acceptance — stranding a rider who already has a matched driver.

• Consistency model — location is best-effort (lose one update, next arrives in 4s); ride state is CP (never lose a transition)
• SLO — location: 99.9% (brief gaps acceptable); matching: 99.99%; ride state: 99.99%; surge: 99%
• Scaling axis — location scales on write throughput; matching on query latency; ride state on transaction rate; surge on compute
• Failure isolation — Redis down? Matching degrades but active rides continue. Postgres down? New rides fail but location tracking continues.

Total budget: 1000ms (1 second)

  0ms   ─  API Gateway auth + rate limit check
 50ms   ─  Ride Service: create ride record in Postgres
 80ms   ─  Payment Service: hold authorization (async, non-blocking)
100ms   ─  Matching Service: GEORADIUS query (Redis) → top 10 drivers
150ms   ─  Matching Service: fetch driver metadata (Redis HMGET, pipelined)
200ms   ─  ETA Service: compute pickup ETA for top 5 candidates
400ms   ─  Matching Service: rank candidates, select winner
450ms   ─  Send RIDE_OFFER to driver via WebSocket
           ───────────────────────────────────
           Total: ~450ms  ✅ (well under 1s budget)
           Remaining 550ms: buffer for driver acceptance timeout handling

How do we handle frequent driver location updates and efficient proximity searches on location data? This is the hardest infrastructure problem in the entire system, and our high-level design from the previous section doesn't solve it yet. There are two fundamental problems we need to address:

The two problems with the naive approach

Problem 1: High frequency of writes. With 5 million active drivers sending GPS updates every 4 seconds, that's ~1.25 million writes per second. Whether you choose DynamoDB or PostgreSQL (both great choices for ride state), neither can handle this write volume at reasonable cost. PostgreSQL maxes out at ~50K writes/sec on a single primary. DynamoDB could technically handle it, but at on-demand pricing ($1.25 per million WRUs), 1.25M writes/sec of ~100 bytes each would cost over $135,000 per day — $49M per year just for location storage. This is a non-starter for any company.

Problem 2: Query efficiency. Without spatial indexing, finding nearby drivers requires a full table scan — calculating the haversine distance between the rider's location and every driver's location. With 5 million rows, that's 5 million distance calculations per ride request. Even with B-tree indexes on lat/lng columns, traditional indexes are not designed for multi-dimensional proximity queries. A B-tree can efficiently find "lat between X and Y" but cannot efficiently answer "all points within 5km of this coordinate" without scanning a large range and post-filtering.

Bad Solution: Direct database writes + proximity queries

The naive approach — what we have coming out of the high-level design — writes each driver's location update directly to PostgreSQL or DynamoDB as it arrives, and performs proximity searches on this raw data. This is what most candidates propose initially, and it fails on both dimensions:

• Write throughput: 1.25M inserts/sec overwhelms any relational database. Even with connection pooling and batching, Postgres can't sustain this.
• Query latency: Full table scans or poorly-indexed range queries take seconds, not milliseconds. Matching becomes unusable.
• Cost: DynamoDB at this scale costs $135K+/day. Postgres would need dozens of shards with custom routing logic.
• Storage waste: Writing every 4-second update to durable storage creates massive tables of ephemeral data that's stale within seconds.

This approach would lead to system overload, high latency, and poor user experience. It's unsuitable for any ride-sharing application at scale.

Good Solution: Batch processing + specialized geospatial database

Instead of writing each location update directly, aggregate updates over a short interval (e.g., 2 seconds) and batch-process them. This reduces write operations by 4–8×. For proximity searches, use a specialized geospatial database with appropriate indexing — PostgreSQL with the PostGIS extension supports spatial indexes (R-trees) that can answer "find all points within 5km" efficiently.

PostGIS uses GiST (Generalized Search Tree) indexes that partition space hierarchically, allowing proximity queries to prune large portions of the dataset without scanning every row. A query like ST_DWithin(driver_location, pickup_point, 5000) uses the spatial index to return results in milliseconds rather than seconds.

Challenges: The batch interval introduces staleness — a 2-second batch means driver positions can be up to 2 seconds old. At 30 km/h city speed, that's ~17 meters of drift. More critically, even with batching, 1.25M/4 = ~312K writes/sec still exceeds what a single PostGIS instance can handle. You'd need multiple shards with geographic partitioning, adding significant operational complexity.

Great Solution: Real-time in-memory geospatial data store (chosen)

We can address all limitations of the previous solutions by using an in-memory data store like Redis, which supports geospatial data types and commands natively. This handles real-time location updates AND proximity searches with high throughput and low latency, while minimizing storage costs through automatic data overwriting.

Redis uses geohashing internally to encode lat/lng into a 52-bit integer score within a sorted set. Each driver is a member associated with their geohash score. GEOADD overwrites the previous position on every update — so we always have the most recent location without accumulating stale data. No batch processing needed. GEOSEARCH (or the older GEORADIUS) finds all members within a given radius, returning results sorted by distance in sub-millisecond time.

For stale data from drivers who go offline, we run a periodic cleanup process every 10 seconds that removes drivers whose last update timestamp exceeds 30 seconds. One approach: maintain a companion sorted set keyed by timestamp, and periodically remove entries older than the threshold from both the timestamp set and the geo set.

Challenges — durability: Redis is in-memory, so there's a risk of data loss on crash. However, this risk is mitigated by:

• Redis persistence ( RDB/AOF): Enable RDB snapshots or Append-Only File to periodically save state to disk.
• Redis Sentinel / Cluster: Automatic failover promotes a replica to primary if the master goes down.
• Ephemeral data advantage: Even with total data loss, drivers send fresh updates every 4 seconds. The system fully recovers within ~30 seconds as all active drivers re-populate the index. This is fundamentally different from losing ride state (which would be catastrophic) — location data is inherently self-healing.

Now that we've established Redis Geo as the storage layer, the remaining question is: what spatial cell system do we use for region management (surge pricing, supply counting, city sharding)? This is where the choice between GeoHash, QuadTree, S2, and H3 matters.

Option A: GeoHash (for region management)

GeoHash encodes a latitude/longitude pair into a string by interleaving the bits of each coordinate and base32-encoding the result. Nearby points share a common prefix — so "find nearby drivers" becomes a prefix scan on a sorted index. A 6-character GeoHash covers a ~1.2km × 0.6km cell.

The appeal is simplicity: store drivers keyed by their GeoHash prefix, and a radius query becomes "scan this cell and its 8 neighbors." But GeoHash has a fundamental flaw for ride matching: edge effects. Two points 10 meters apart can have completely different GeoHash prefixes if they straddle a cell boundary. This means a driver 50m away might not appear in your query because they're in an adjacent cell you forgot to check.

function findNearbyDrivers(lat: number, lng: number, radiusKm: number) {
  const centerHash = geohash.encode(lat, lng, precision=6); // ~1.2km cell
  const neighbors = geohash.neighbors(centerHash);          // 8 adjacent cells
  const cellsToSearch = [centerHash, ...neighbors];         // 9 cells total

  const drivers: Driver[] = [];
  for (const cell of cellsToSearch) {
    // Prefix scan on sorted index
    drivers.push(...await redis.zrangebylex(`drivers:geo`, `[${cell}`, `[${cell}\xff`));
  }

  // Post-filter: actual distance check (GeoHash cells are rectangular, not circular)
  return drivers.filter(d => haversine(lat, lng, d.lat, d.lng) <= radiusKm);
}

// Problem: 9-cell search misses drivers in cells beyond immediate neighbors
// for larger radii. Must expand to 25+ cells for 5km radius.

Option B: QuadTree

A QuadTree recursively divides 2D space into four quadrants. Each node splits when it contains more than N points (e.g., 100 drivers). Dense areas (city centers) get deeply subdivided; sparse areas (highways) stay as large cells. A radius query traverses the tree, pruning branches that don't intersect the search circle.

QuadTrees are excellent for static or slowly-changing point sets. The problem for ride matching: drivers move every 4 seconds. Each location update requires removing the driver from its current leaf node and inserting into a new one — potentially triggering node splits or merges. At 1.25M updates/sec, the tree is constantly being restructured, creating lock contention and cache invalidation.

Update operation:
  1. Find current leaf containing driver_id    → O(log N) tree traversal
  2. Remove driver from leaf                   → O(1) but may trigger merge
  3. Find new leaf for updated coordinates     → O(log N) tree traversal
  4. Insert driver into new leaf               → O(1) but may trigger split

At 1.25M updates/sec:
  → 2.5M tree traversals/sec (find old + find new)
  → Frequent splits/merges in dense areas (airports, stations)
  → In-memory tree must be sharded — but spatial queries cross shard boundaries

Verdict: works for static data (POI search), too expensive for real-time moving points.

Option C: S2 Geometry Library (chosen)

Google's S2 Geometry library divides the Earth into hierarchical cells at 30 levels. Level 12 cells are ~3.3km² (ideal for ride matching). Unlike GeoHash, S2 cells are roughly equal-area everywhere on Earth and have no edge discontinuities — a circle query returns a compact set of cells that perfectly covers the search area.

The key insight: S2 cells are just 64-bit integers. A radius query becomes "find all drivers whose S2 cell ID falls within this set of cell ranges." This maps perfectly to Redis sorted set range queries or simple hash lookups. Updates are O(1) — compute the new cell ID from lat/lng and update the sorted set member.

import { S2CellId, S2LatLng, S2RegionCoverer } from 's2-geometry';

// On location update: O(1) — just compute cell and GEOADD
function onLocationUpdate(driverId: string, lat: number, lng: number) {
  const cellId = S2CellId.fromLatLng(S2LatLng.fromDegrees(lat, lng)).parent(12);
  const cellToken = cellId.toToken(); // e.g., "3858f62"

  // Update driver's position in the geo sorted set
  await redis.geoadd('drivers:available:economy', lng, lat, driverId);

  // Also track which S2 cell they're in (for surge counting)
  await redis.hset(`driver:${driverId}`, 'cell', cellToken, 'lat', lat, 'lng', lng);
}

// On ride request: find drivers within radius
function findNearbyDrivers(pickupLat: number, pickupLng: number, radiusKm: number) {
  // Redis GEORADIUS handles the spatial query natively
  const candidates = await redis.georadius(
    'drivers:available:economy',
    pickupLng, pickupLat,
    radiusKm, 'km',
    'COUNT', 20, 'ASC', 'WITHCOORD', 'WITHDIST'
  );

  return candidates; // Already sorted by distance ascending
}

// S2 cells used for surge pricing (count drivers per cell)
function getDriversInCell(cellToken: string): number {
  // Scan drivers hash for matching cell — or maintain a counter per cell
  return await redis.get(`supply:${cellToken}`) ?? 0;
}

Option D: H3 (Uber's hexagonal grid)

Uber developed H3 specifically for ride matching. Hexagonal cells have a key advantage: every neighbor is equidistant from the center (unlike square cells where diagonal neighbors are √2× farther). This makes "find all cells within N rings" produce a more uniform coverage than GeoHash or S2.

H3 is a valid choice — Uber uses it in production. For an interview, either S2 or H3 is acceptable. The trade-off: H3 has better neighbor uniformity but a smaller ecosystem and fewer database integrations. S2 has broader support (BigQuery, Postgres via PostGIS, native Redis Geo compatibility).

Head-to-head comparison

Each approach makes different trade-offs between update cost, query accuracy, and implementation complexity. The right choice depends on your write volume and query patterns.

This is the hot write path — 1.25M GPS updates per second flowing from driver phones into the geospatial index. Every design choice here optimizes for throughput and resilience over consistency. A lost location update is invisible (the next one arrives in 4 seconds); a blocked connection server is catastrophic (500K drivers go dark).

Ingestion flow

The flow is deliberately simple — minimal processing between the driver's phone and the spatial index. Each step is designed to never block: validation is CPU-only (no I/O), the Redis write is fire-and-forget with pipelining, and failures are absorbed silently.

The ingestion handler

The code is intentionally minimal. No database calls, no complex business logic, no blocking I/O beyond the Redis pipeline. The entire handler should complete in under 1ms per update.

async function handleLocationUpdate(update: LocationUpdate): Promise<void> {
  // 1. Validate (CPU-only, no I/O)
  if (!isValidCoordinate(update.lat, update.lng)) return;
  if (isImpossibleJump(update)) {
    metrics.anomalousUpdates.inc();
    return; // Silent drop — don't block the connection
  }

  // 2. Compute S2 cell for surge tracking
  const cellToken = computeS2Cell(update.lat, update.lng, level=12);

  // 3. Pipeline Redis commands (single round-trip)
  const pipeline = redis.pipeline();
  pipeline.geoadd(
    `drivers:available:${update.vehicleType}`,
    update.lng, update.lat, update.driverId
  );
  pipeline.hset(`driver:${update.driverId}`, {
    lat: update.lat,
    lng: update.lng,
    heading: update.heading,
    speed: update.speed,
    cell: cellToken,
    lastUpdate: update.timestamp,
  });
  pipeline.incr(`supply:${cellToken}`);
  pipeline.expire(`supply:${cellToken}`, 60);
  await pipeline.exec(); // Fire — don't check individual results

  // 4. Sample to Kafka for analytics (1 in 10)
  if (update.timestamp % 10 === 0) {
    kafkaProducer.produce('driver-locations', update.driverId, update);
  }
}

Connection management

Managing 5M persistent WebSocket connections is a distributed systems problem in itself. Each connection server handles ~500K connections. Drivers are assigned to servers via consistent hashing on driver_id — this ensures reconnections after a server restart land on the same server (preserving any in-memory session state).

Battery and network optimization

Driver phones have limited battery and often poor network connectivity. The update frequency must balance freshness (matching accuracy) against resource consumption. Uber's production system uses adaptive frequency based on driver state.

Driver state → Update frequency:

  ON_TRIP (carrying rider):     every 2 seconds  (rider sees live tracking)
  AVAILABLE (waiting for ride): every 4 seconds  (matching needs fresh data)
  EN_ROUTE (heading to pickup): every 2 seconds  (rider sees approach)
  IDLE (app open, not available): every 30 seconds (just presence check)
  BACKGROUND (app minimized):   every 60 seconds (battery preservation)

Bandwidth per driver:
  Available: 40B × (1/4s) = 10 B/s = 864 KB/day
  On trip:   40B × (1/2s) = 20 B/s = 1.7 MB/day

Battery impact:
  GPS polling every 4s: ~5% battery/hour (acceptable)
  GPS polling every 1s: ~12% battery/hour (too aggressive)
  → 4-second interval is the industry sweet spot

Matching is the core product logic — the decision that determines whether a rider waits 3 minutes or 10. The algorithm must balance multiple competing objectives: minimize pickup time, maximize driver utilization, respect driver preferences, and handle the race condition where multiple riders compete for the same driver simultaneously.

The matching pipeline

Matching is not a single query — it's a multi-stage pipeline that progressively narrows candidates from thousands of nearby drivers to the single best match. Each stage filters or ranks, and the pipeline must complete end-to-end in under 500ms.

Scoring function

The scoring function is the heart of matching quality. Pure nearest-driver matching (Uber's original approach) is simple but suboptimal — a driver 500m away driving in the opposite direction has a higher actual ETA than a driver 1km away heading toward the pickup. The composite score captures this nuance.

interface MatchCandidate {
  driverId: string;
  distanceKm: number;
  etaSeconds: number;
  rating: number;        // 1.0 – 5.0
  acceptanceRate: number; // 0.0 – 1.0
  headingAlignment: number; // 0.0 – 1.0 (1 = driving toward pickup)
}

function computeMatchScore(candidate: MatchCandidate): number {
  // Normalize ETA to 0–1 (lower ETA = higher score)
  // Max acceptable ETA: 600 seconds (10 min)
  const etaScore = Math.max(0, 1 - candidate.etaSeconds / 600);

  // Rating normalized to 0–1
  const ratingScore = (candidate.rating - 1) / 4; // 1–5 → 0–1

  // Acceptance rate already 0–1
  const acceptScore = candidate.acceptanceRate;

  // Heading alignment already 0–1
  const headingScore = candidate.headingAlignment;

  // Weighted composite
  return (
    etaScore * 0.60 +
    ratingScore * 0.20 +
    acceptScore * 0.15 +
    headingScore * 0.05
  );
}

// Heading alignment: cosine of angle between driver's heading and
// bearing from driver to pickup. 1.0 = driving straight toward pickup.
function computeHeadingAlignment(
  driverHeading: number,
  driverLat: number, driverLng: number,
  pickupLat: number, pickupLng: number
): number {
  const bearingToPickup = computeBearing(driverLat, driverLng, pickupLat, pickupLng);
  const angleDiff = Math.abs(driverHeading - bearingToPickup);
  const normalized = angleDiff > 180 ? 360 - angleDiff : angleDiff;
  return Math.max(0, 1 - normalized / 180); // 0° diff = 1.0, 180° diff = 0.0
}

The race condition: concurrent matching

The hardest problem in matching isn't finding the nearest driver — it's handling the case where two riders request at the same moment and both want the same driver. Without coordination, both matching instances select the same winner, both send offers, and one rider gets a delayed re-match.

The solution is an optimistic lock via Redis: before sending an offer, the matching service attempts to SET a lock key with NX (set-if-not-exists) and a 20-second TTL. If the SET fails, the driver is already being offered another ride — skip to the next candidate. This is cheaper than a distributed lock because conflicts are rare (most drivers aren't being simultaneously targeted).

async function tryOfferToDriver(driverId: string, rideId: string): Promise<boolean> {
  // Attempt to acquire offer lock (NX = set-if-not-exists, EX = TTL)
  const acquired = await redis.set(
    `offer_lock:${driverId}`,
    rideId,
    'NX', 'EX', 20  // 20-second TTL (15s offer + 5s buffer)
  );

  if (!acquired) {
    // Another ride is already being offered to this driver
    metrics.offerConflicts.inc();
    return false;
  }

  // Send offer via WebSocket
  await connectionServer.pushToDriver(driverId, {
    type: 'ride_offer',
    rideId,
    timeout: 15,
  });

  return true;
}

// On acceptance or timeout, release the lock
async function releaseOfferLock(driverId: string): Promise<void> {
  await redis.del(`offer_lock:${driverId}`);
}

Re-matching on timeout or rejection

When a driver rejects or the 15-second timer expires, the matching service must quickly find the next best candidate. It doesn't restart from scratch — it maintains a ranked candidate list from the original query and moves to the next one. After 3 failed attempts, it re-queries the spatial index (positions may have changed) for a fresh candidate set.

Surge pricing is the market-making mechanism that balances supply and demand in real time. When demand spikes (concert ends, rain starts), prices rise to incentivize more drivers to come online and to reduce frivolous requests. When supply exceeds demand, prices drop to baseline. The system must compute multipliers per geographic cell every 30 seconds without affecting matching latency.

How surge is computed

The city is divided into S2 level-12 cells (~3.3km² each). For each cell, the Surge Service counts demand (ride requests in the last 2 minutes) and supply (available drivers currently in that cell). The ratio determines the multiplier. This runs as a background job every 30 seconds — it never blocks the matching path.

The multiplier formula

The core formula is simple: demand/supply ratio mapped to a multiplier via a piecewise function. But raw ratios are noisy — a cell with 2 requests and 1 driver shouldn't surge to 2×. The formula includes minimum thresholds and smoothing to prevent oscillation.

interface CellMetrics {
  cellId: string;
  demand: number;   // ride requests in last 2 minutes
  supply: number;   // available drivers in cell right now
}

function computeSurgeMultiplier(metrics: CellMetrics): number {
  const { demand, supply } = metrics;

  // Minimum thresholds — don't surge on tiny numbers
  if (demand < 5 || supply < 2) return 1.0;

  const ratio = demand / supply;

  // Piecewise multiplier function
  if (ratio <= 1.0) return 1.0;          // supply >= demand → no surge
  if (ratio <= 1.5) return 1.2;          // mild imbalance
  if (ratio <= 2.0) return 1.5;          // moderate
  if (ratio <= 3.0) return 2.0;          // high demand
  if (ratio <= 5.0) return 2.5;          // very high
  return 3.0;                             // cap at 3× (regulatory/PR limit)
}

// Smoothing: new multiplier is weighted average of current and previous
function smoothedMultiplier(current: number, previous: number): number {
  const SMOOTHING_FACTOR = 0.7; // 70% new, 30% old
  return current * SMOOTHING_FACTOR + previous * (1 - SMOOTHING_FACTOR);
}

// The full computation loop (runs every 30 seconds)
async function computeAllCells(): Promise<void> {
  const activeCells = await getActiveCells(); // cells with any demand or supply

  for (const cellId of activeCells) {
    const demand = await redis.get(`demand:${cellId}`) ?? 0;
    const supply = await redis.get(`supply:${cellId}`) ?? 0;
    const previous = await redis.get(`surge:${cellId}`) ?? 1.0;

    const raw = computeSurgeMultiplier({ cellId, demand: +demand, supply: +supply });
    const smoothed = smoothedMultiplier(raw, +previous);

    await redis.set(`surge:${cellId}`, smoothed.toFixed(2), 'EX', 60);
  }
}

Why smoothing matters

Without smoothing, surge oscillates wildly. Imagine: surge goes to 2× → riders stop requesting → demand drops → surge drops to 1× → riders flood back → surge spikes again. This "sawtooth" pattern creates a terrible user experience. The exponential moving average (70/30 blend) dampens oscillations while still responding to genuine demand shifts within 2–3 computation cycles (~90 seconds).

Demand counting

Demand is tracked using a sliding window counter in Redis. When a ride is requested, the Ride Service increments the demand counter for the pickup cell. The counter has a 2-minute TTL — old requests naturally expire without cleanup jobs.

// Called by Ride Service when a new ride is requested
async function trackDemand(pickupLat: number, pickupLng: number): Promise<void> {
  const cellToken = computeS2Cell(pickupLat, pickupLng, level=12);
  const key = `demand:${cellToken}`;

  // Increment and set TTL (2 minutes)
  await redis.incr(key);
  await redis.expire(key, 120); // auto-expires — no cleanup needed
}

Surge transparency and rider experience

Riders see the surge multiplier before confirming their ride request. The flow is: rider opens app → app calls GET /api/v1/surge with their location → shows "1.5× pricing in effect" → rider confirms → ride request includes the surge multiplier they agreed to. This prevents surprise charges and is required by regulations in many jurisdictions.

ETA is what makes the product feel accurate. A rider sees "driver arriving in 4 minutes" — if the driver arrives in 3–5 minutes, trust is maintained. If it says 4 and takes 12, the product feels broken. ETA computation is the most computationally expensive part of the matching pipeline, but it runs in parallel with other steps and is heavily cached.

Two types of ETA

The system computes two distinct ETAs for every ride: pickup ETA (how long until the driver reaches the rider) and trip ETA (how long the ride itself will take). They use the same underlying road-graph engine but serve different purposes and have different accuracy requirements.

Road-graph routing

ETA is NOT straight-line distance divided by average speed. That gives wildly inaccurate results in cities with one-way streets, highways, and traffic. The ETA service uses a weighted road graph where edges represent road segments weighted by travel time. The weights incorporate historical speed data (time-of-day patterns) and live traffic from driver GPS traces. The three main approaches are Dijkstra's algorithm (accurate but slow), pre-computed travel-time matrices (fast but approximate), and Contraction Hierarchies (best balance of speed and accuracy, used by Google Maps).

Approach 1: Full Dijkstra on road graph
  - Most accurate
  - O(E log V) per query — too slow for real-time at scale
  - Used for trip ETA (longer routes, more budget)

Approach 2: Pre-computed travel time matrix
  - Divide city into ~1000 zones
  - Pre-compute zone-to-zone travel time every 5 minutes
  - Lookup is O(1) — just matrix[from_zone][to_zone]
  - Used for pickup ETA during matching (speed > accuracy)

Approach 3: Hierarchical routing (Contraction Hierarchies)
  - Pre-process graph to add "shortcut" edges between important nodes
  - Query time: O(log V) instead of O(E log V)
  - Best balance of speed and accuracy
  - Used by Google Maps, OSRM, Valhalla

Production choice: Approach 2 for matching (speed), Approach 3 for display (accuracy)

The travel-time matrix

For the matching pipeline where we need ETAs for 5–10 candidates in under 50ms total, a pre-computed matrix is the only viable approach. The city is divided into ~1000 zones (larger than S2 cells — think neighborhoods). Every 5 minutes, a background job recomputes the zone-to-zone travel times using recent driver GPS traces as ground truth.

// Pre-computed matrix: travelTime[fromZone][toZone] = seconds
// Updated every 5 minutes from aggregated driver GPS traces
const travelTimeMatrix: Map<string, Map<string, number>> = new Map();

// Fast ETA lookup for matching (O(1))
function getPickupEta(driverLat: number, driverLng: number,
                      pickupLat: number, pickupLng: number): number {
  const fromZone = latLngToZone(driverLat, driverLng);
  const toZone = latLngToZone(pickupLat, pickupLng);

  // Same zone: use straight-line with speed factor
  if (fromZone === toZone) {
    const distKm = haversine(driverLat, driverLng, pickupLat, pickupLng);
    return Math.round(distKm / 0.5 * 60); // ~30 km/h in-city average → seconds
  }

  // Cross-zone: matrix lookup
  const baseTime = travelTimeMatrix.get(fromZone)?.get(toZone);
  if (!baseTime) return fallbackEta(driverLat, driverLng, pickupLat, pickupLng);

  return baseTime;
}

// Fallback: Haversine distance × speed factor (when matrix has no data)
function fallbackEta(lat1: number, lng1: number, lat2: number, lng2: number): number {
  const distKm = haversine(lat1, lng1, lat2, lng2);
  const avgSpeedKmPerMin = 0.5; // 30 km/h in city
  return Math.round(distKm / avgSpeedKmPerMin * 60);
}

Updating the matrix with live data

The matrix is only as good as its data. Every completed trip provides a ground-truth data point: actual travel time between two zones at a specific time of day. A background pipeline aggregates these into rolling averages, weighted toward recent observations. This means the matrix automatically adapts to traffic patterns, road closures, and seasonal changes.

Input: completed trip traces (from Kafka topic: trip-completed)

Every 5 minutes:
  1. Aggregate all trips completed in the last 30 minutes
  2. For each (from_zone, to_zone) pair with >= 3 observations:
     - Compute median travel time (robust to outliers)
     - Blend with historical baseline: 60% recent + 40% historical
  3. Write updated matrix to Redis (hash: eta_matrix:{from_zone})
  4. ETA service reads from Redis on every query

Fallback hierarchy:
  1. Recent observations (last 30 min) — best accuracy
  2. Same time-of-day historical (last 4 weeks) — captures patterns
  3. All-time average for this zone pair — last resort
  4. Haversine × speed factor — when no data exists at all

The ride lifecycle is where consistency matters most. A driver must never be double-booked. A cancelled ride must never be completed. A payment must never be charged without a completed trip. Every state transition is a critical section that must be serialized per ride and validated against the state machine. This is the CP (consistency-prioritized) path of the system.

State transition handler

Every state change goes through a single handler that validates the transition, updates the database atomically, publishes an event, and notifies the affected parties. The handler uses optimistic concurrency control — the UPDATE includes a WHERE clause on the current status, so concurrent transitions are safely rejected.

const VALID_TRANSITIONS: Record<string, string[]> = {
  REQUESTED: ['MATCHING', 'CANCELLED'],
  MATCHING: ['OFFERED', 'NO_MATCH', 'CANCELLED'],
  OFFERED: ['ACCEPTED', 'MATCHING', 'CANCELLED'],  // MATCHING = re-match on timeout
  ACCEPTED: ['EN_ROUTE', 'CANCELLED'],
  EN_ROUTE: ['IN_PROGRESS', 'CANCELLED'],
  IN_PROGRESS: ['COMPLETED', 'CANCELLED'],
};

async function transitionRide(
  rideId: string,
  fromStatus: string,
  toStatus: string,
  metadata: Record<string, unknown>
): Promise<{ success: boolean; ride?: Ride }> {
  // 1. Validate transition is legal
  if (!VALID_TRANSITIONS[fromStatus]?.includes(toStatus)) {
    throw new InvalidTransitionError(fromStatus, toStatus);
  }

  // 2. Atomic update with optimistic concurrency
  const result = await db.query(`
    UPDATE rides
    SET status = $1,
        updated_at = now(),
        matched_at = CASE WHEN $1 = 'ACCEPTED' THEN now() ELSE matched_at END,
        started_at = CASE WHEN $1 = 'IN_PROGRESS' THEN now() ELSE started_at END,
        completed_at = CASE WHEN $1 = 'COMPLETED' THEN now() ELSE completed_at END,
        cancelled_at = CASE WHEN $1 = 'CANCELLED' THEN now() ELSE cancelled_at END,
        cancel_reason = CASE WHEN $1 = 'CANCELLED' THEN $4 ELSE cancel_reason END
    WHERE id = $2 AND status = $3
    RETURNING *
  `, [toStatus, rideId, fromStatus, metadata.reason ?? null]);

  // 3. If rowcount = 0, someone else transitioned first (race condition)
  if (result.rowCount === 0) {
    return { success: false }; // Caller should re-read and retry or return 409
  }

  const ride = result.rows[0];

  // 4. Publish event for downstream consumers
  await kafka.produce('ride-events', rideId, {
    type: `ride.${toStatus.toLowerCase()}`,
    rideId,
    riderId: ride.rider_id,
    driverId: ride.driver_id,
    timestamp: new Date().toISOString(),
    ...metadata,
  });

  // 5. Side effects based on new state
  await handleSideEffects(ride, toStatus);

  return { success: true, ride };
}

Side effects per transition

Each state transition triggers specific side effects — notifications, driver availability changes, payment actions. These are executed after the database write succeeds, ensuring the source of truth is always consistent even if a side effect fails.

The acceptance race condition

The most critical race condition: a rider cancels at the exact moment a driver accepts. Without careful handling, the system could end up in an inconsistent state — driver thinks they have a ride, rider thinks they cancelled. The optimistic concurrency in the transition handler prevents this naturally.

Event-driven downstream processing

Every state transition publishes an event to Kafka. Downstream consumers process these events asynchronously — they never block the state transition itself. This decouples the ride lifecycle from billing, analytics, driver scoring, and fraud detection.

Topic: ride-events (partitioned by ride_id for ordering)

Consumer groups:
  billing-service:
    ride.completed → capture payment, generate invoice
    ride.cancelled → release hold, apply cancellation fee if applicable

  analytics-service:
    All events → aggregate into ride metrics (completion rate, avg wait time)

  driver-scoring:
    ride.accepted → update acceptance rate
    ride.completed → update completion rate, recalculate rating

  fraud-detection:
    ride.cancelled (by driver, repeatedly) → flag for review
    ride.completed (suspiciously short) → check for fake rides

  notification-service:
    ride.accepted → push to rider ("driver on the way")
    ride.completed → push receipt to rider

Delivery guarantee: at-least-once (consumers are idempotent on ride_id + event_type)

Different traffic levels need different architectures. A ride-matching system serving one city looks nothing like one serving 600 cities globally. Naming the scaling tiers explicitly shows you can scale up and down — starting simple and earning complexity is what senior engineers do.

Scaling at different tiers

Each tier introduces new constraints that force architectural changes. The key insight: location ingestion hits its ceiling first (at ~500K drivers), long before ride state or matching becomes a bottleneck.

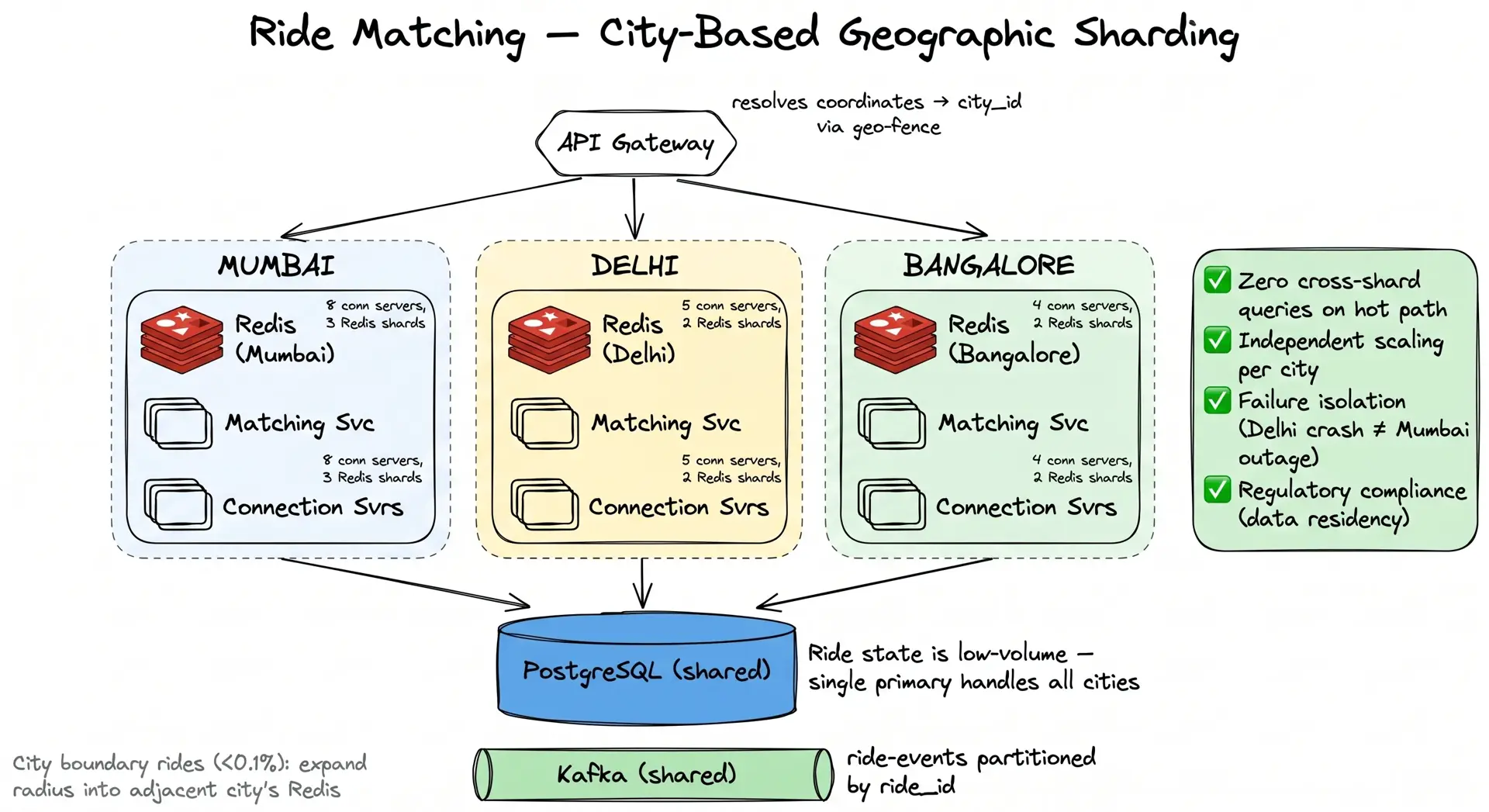

City-based sharding (the natural partition)

Ride matching has a natural sharding dimension that most systems lack: geography. A rider in Mumbai will never be matched to a driver in Delhi. This means the entire system can be sharded by city/region with zero cross-shard queries on the hot path. Each city gets its own Redis instance, its own matching service fleet, and its own connection server pool.

Request routing:
  1. Rider requests ride with pickup coordinates
  2. API Gateway resolves coordinates → city_id (via geo-fence lookup)
  3. Route to city-specific service cluster

Per-city infrastructure:
  Redis:      redis-mumbai.internal, redis-delhi.internal, ...
  Matching:   matching-mumbai.internal (3 replicas)
  Connection: ws-mumbai.internal (load-balanced, sticky)
  Postgres:   Shared across cities (ride state is low-volume)

Benefits:
  ✅ Zero cross-shard queries — matching is always within one city
  ✅ Independent scaling — Mumbai gets more capacity than a small city
  ✅ Failure isolation — Redis crash in Delhi doesn't affect Mumbai
  ✅ Regulatory compliance — data stays in the correct region

Edge case: rides near city boundaries
  → Expand search radius into adjacent city's Redis if needed
  → Rare (<0.1% of rides) — acceptable to handle as a special case

Failure-mode playbook

Each component can fail independently. The system must degrade gracefully — a Redis failure should not prevent active rides from completing, and a Postgres failure should not disconnect drivers.

SLO targets per path

Different paths have different availability and latency targets. Setting explicit SLOs per path drives infrastructure investment and on-call priority decisions.

Good observability is what lets you detect a matching degradation before riders start churning, spot a connection server losing drivers, and prove the SLO is being met. Name the metrics, the dashboards, and the alerts — not just "we'll use Prometheus."

Golden signals (per service)

Each service has its own set of golden signals. The matching service cares about latency and success rate; the connection servers care about connection count and throughput; the ride service cares about state transition errors.

Business metrics (not just infra)

Infrastructure metrics tell you if the system is healthy. Business metrics tell you if the product is working. Both are essential for a ride-matching system where a 10% increase in match latency directly correlates with rider churn.

• Match success rate (target: > 95% of requests result in a ride)
• Average pickup ETA (target: < 5 min in urban areas)
• ETA accuracy (predicted vs actual — target: ±1 min median)
• Driver acceptance rate (target: > 80% — low rate = bad offer targeting)
• Time to first offer (from request to driver seeing the offer)
• Re-match rate (how often first driver rejects/times out)
• Surge coverage (% of cells with fresh surge data)
• Driver online hours vs rides completed (utilization efficiency)
• Cancellation rate by stage (OFFERED vs ACCEPTED vs EN_ROUTE)
• Rider wait time distribution (p50, p90, p99 by city)

Alerts that matter

Not every metric needs an alert. Page for user-visible failures; ticket for degradations that need attention within hours; ignore transient blips that self-heal.

Distributed tracing

A single ride request touches 5+ services. Without distributed tracing, debugging "why did this match take 4 seconds?" is impossible. Instrument every service boundary with trace context propagation.

Trace: match.request (total 620ms)
├─ api-gateway.auth                          12ms
├─ ride-service.create_ride                  45ms
│  └─ postgres.insert                        38ms
├─ matching-service.find_candidates          85ms
│  ├─ redis.georadius                        8ms   (15 candidates)
│  └─ redis.hmget_pipeline                   12ms  (metadata for 15)
├─ eta-service.batch_eta                     180ms
│  └─ matrix_lookup × 5                      2ms   (pre-computed)
│  └─ road_graph_query × 2                   160ms (cache miss)
├─ matching-service.score_and_rank           5ms
├─ matching-service.acquire_offer_lock       3ms
│  └─ redis.set_nx                           2ms
├─ connection-server.push_offer              15ms
│  └─ websocket.send                         8ms
└─ matching-service.start_timeout_timer      2ms

Sampling: 1% of all requests + 100% of slow (>2s) + 100% of failures.

Every decision in this design was a trade. Bundling them in one place makes the reasoning easy to review — and gives a candidate a compact story to walk the interviewer through at the end.

Where reasonable engineers disagree

The last 10 minutes of the interview are where candidates separate. The interviewer stops nodding along and starts probing: "what if...?", "how would you...?", "what breaks when...?". These are the questions worth pre-loading.

Curveball follow-ups

Common traps (and how to avoid them)

A 2-minute scan before the interview. If you can state each of these without looking, you're ready.
